Photo Transistor



Photo Transistor

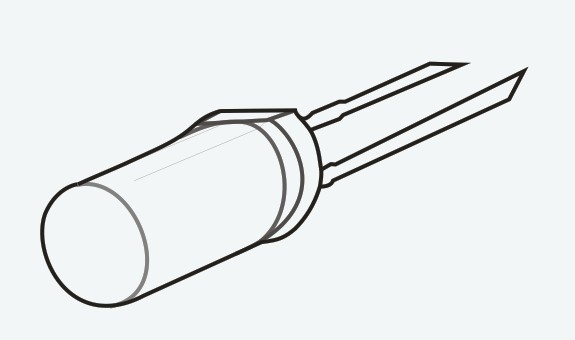

A range of low cost visible light sensor ASICs with a current output which is directly proportional to the light level. They show excellent uniformity and linearity of performance with various types of light including ambient, tungsten filament,fluorescent and LED lights.The devices are supplied in 2-pin packaged LED style or SMD, especially designed to replace CdS cell as a result of the RoHS initiative.

Features:
● Analogue design outputs.
● Free from memory effects(such as blooming in the CdS cell).
● Temperature stable.
● Integrated high gain photo-current amplifier.
● Dark-current cancellation.



Applications:
● Dawn/dusk sensing
● Security lighting ( surveillance camera)
● Car Rear View Camera
● Baby monitor
● Display backlighting in laptops, mobile phones, LCD TVs
● Night-lights/ Solar-lawn lamps



Part Number

MOQ

(PCS)

Dimension

(mm)

IR Rejection Capability

Light Current   (uA)

Dark Current

Operating Voltage

(V)

Hal Fangle

φ

(±℅)

Peak

Spectral Response

(nm)

Light

Range

 (lux)

@10KΩ

 Operating Temperature

(℃)

@10

(lux)

@100

(lux)

@0

(lux)



GR5-H15

1,000

φ5

NO

3.5

30

10uA

2.4V

60

760

~600

-40~85

GR3-H15

1,000

φ3

NO

3.5

30

10uA

2.4V

60

760

~600

-40~85



Part Number

MOQ

(PCS)

Wave Length (nm) VS Transmission (%)

Dimension

 (mm)

 Effective

Area

(mm)

400

500

580

620

700

800

1050

1100

GDBG-510
1,000
>75
>85
50
50
<2
<0.05
<0.05
<1
5
3.5
